EEI CanAm Excavator Hydraulic Rock Drills & RockMore Tooling
CANAM EXCAVATOR-MOUNTED HYDRAULIC ROCK DRILLS · 36 GPM @ 2,500 PSI
High-Impact 8-Foot & 12-Foot Excavator Rock Drills, Air Flushing Kits & RockMore Tooling
CanAm Rock Drill, a division of The EEI-Group (Enterprising Europa, Inc.), manufactures pneumatic and hydraulic rock drill attachments designed to mount directly onto mini excavators and backhoe loaders. Their product line includes compact pneumatic drilling attachments, heavy-duty hydraulic stick drill attachments, compressor flushing kits, and complementary drilling consumables supplied through Rockmore International.
Side-by-Side 8-Foot vs. 12-Foot Hydraulic Rock Drill Matrix
| Engineering Parameter | CanAm 8-Foot Excavator Rock Drill | CanAm 12-Foot Excavator Rock Drill |
|---|---|---|
| Drill Steel Length | 8 Foot | 12 Foot |
| Drill Steel Specification | 1" Hex x 4 1/4" shank - R25 | 1" Hex x 4 1/4" shank - R25 |
| Drill Saddle Travel (Metric) | 2.3 m | 3.3 m |
| Drill Saddle Travel (Imperial) | 90 in | 133 in |
| Hole Diameter Range (Metric) | 33 mm to 51 mm | 33 mm to 51 mm |
| Hole Diameter Range (Imperial) | 1 3/8 in to 2 in | 1 3/8 in to 2 in |
| Total Weight (Metric) | 300 kg | 325 kg |
| Total Weight (Imperial) | 650 lbs | 725 lbs |
| Air Flushing Flow and Pressure | 225 CFM @ 90 psi (6.4 m3 @ 6 bar) | 225 CFM @ 90 psi (6.4 m3 @ 6 bar) |
| Hydraulic Flow Requirements | 2 to 4 gal/min (8 to 16 L/min) | 2 to 4 gal/min (8 to 16 L/min) |
| Electrical Power Requirements | 12 V, 2 A | 12 V, 2 A |
| Bit Tooling System | R25 (6 diameters) | R25 (6 diameters) |
Restored Jobsite Photo Gallery (Album 01: CanAm Rock Drill at Work · 13 Photos)
Click any photo to open in MOD-LIGHTBOX
⊞ Lightbox

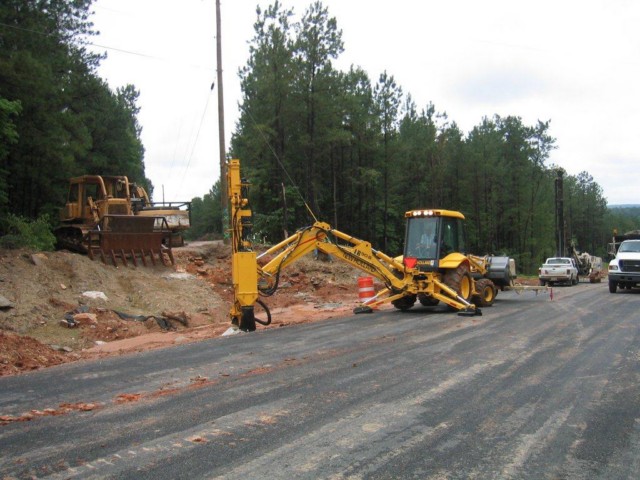

EEI CanAm Excavator Hydraulic Rock Drill at Work (106_0612)
⊞ Lightbox

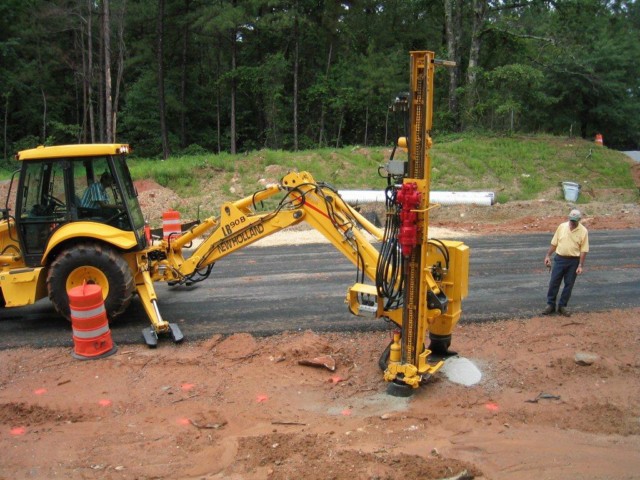

EEI CanAm Excavator Hydraulic Rock Drill at Work (106_0613)
⊞ Lightbox

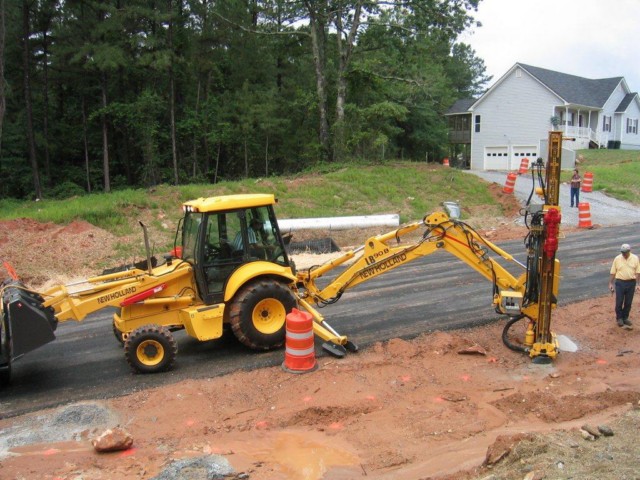

EEI CanAm Excavator Hydraulic Rock Drill at Work (106_0614)
⊞ Lightbox

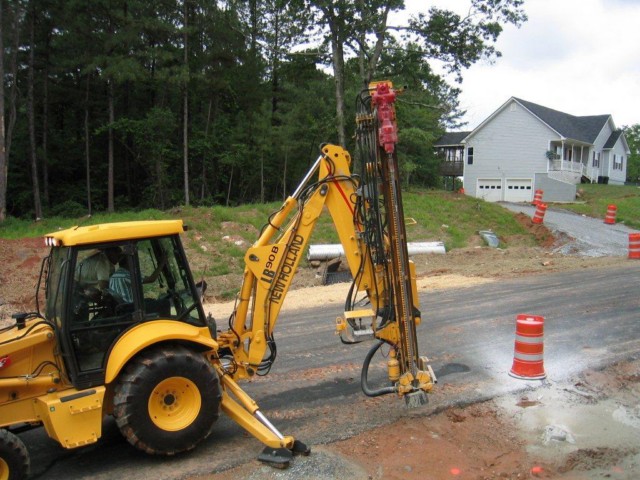

EEI CanAm Excavator Hydraulic Rock Drill at Work (106_0615)
⊞ Lightbox

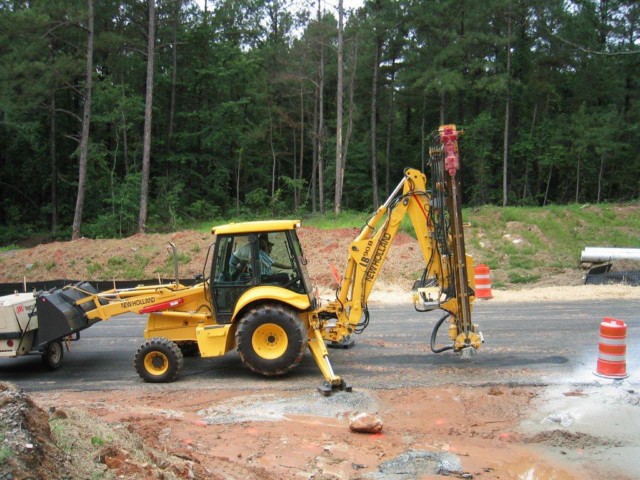

EEI CanAm Excavator Hydraulic Rock Drill at Work (106_0616)
⊞ Lightbox

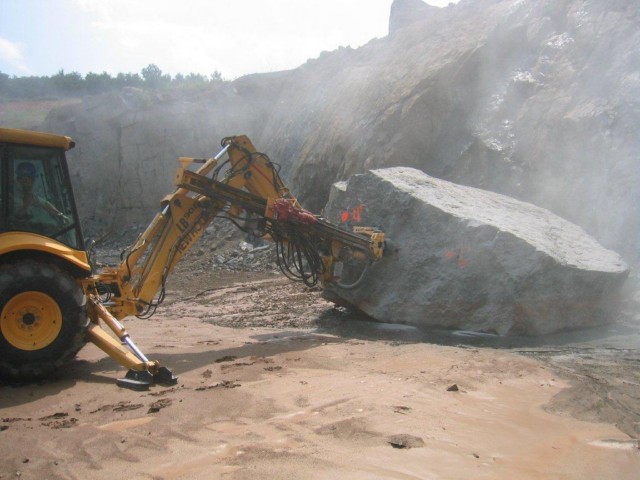

EEI CanAm Excavator Hydraulic Rock Drill at Work (107_0701)
⊞ Lightbox

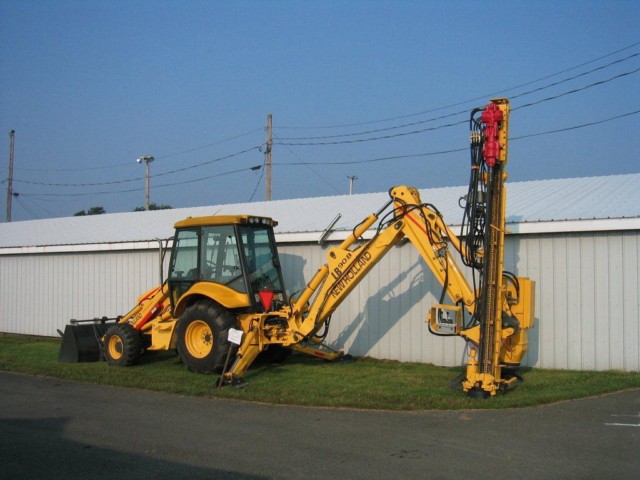

EEI CanAm Excavator Hydraulic Rock Drill at Work (107_0706)
⊞ Lightbox

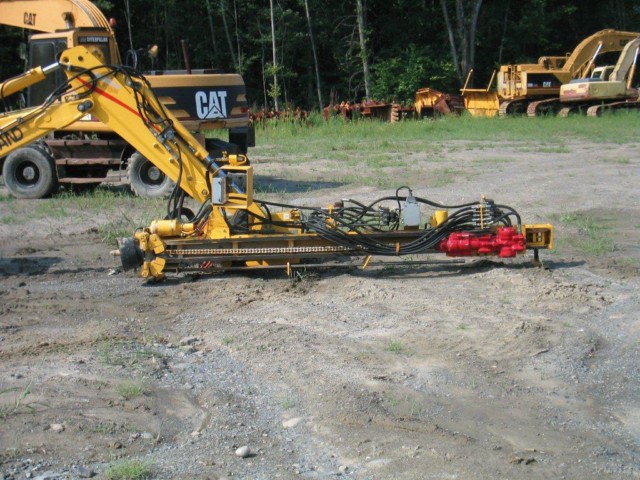

EEI CanAm Excavator Hydraulic Rock Drill at Work (107_0728)
⊞ Lightbox

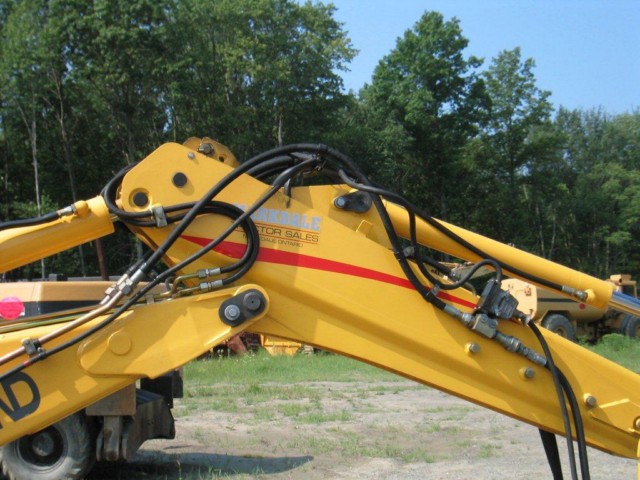

EEI CanAm Excavator Hydraulic Rock Drill at Work (107_0730)
⊞ Lightbox

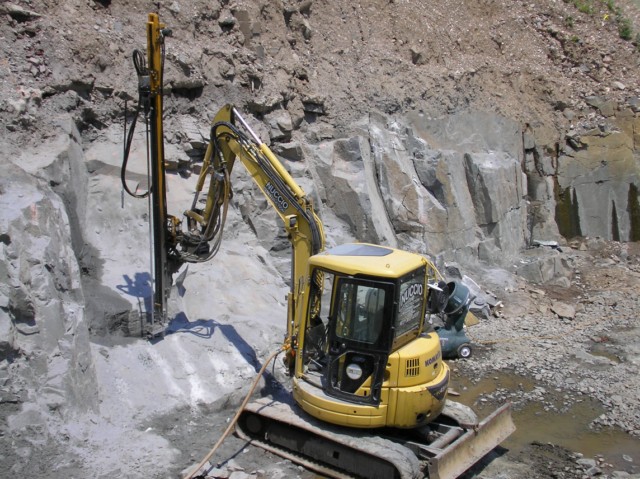

EEI CanAm Excavator Hydraulic Rock Drill at Work (177_G)
⊞ Lightbox

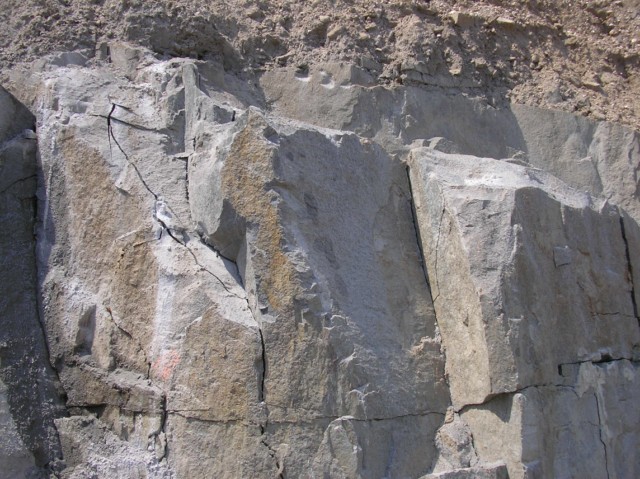

EEI CanAm Excavator Hydraulic Rock Drill at Work (186_G)
⊞ Lightbox

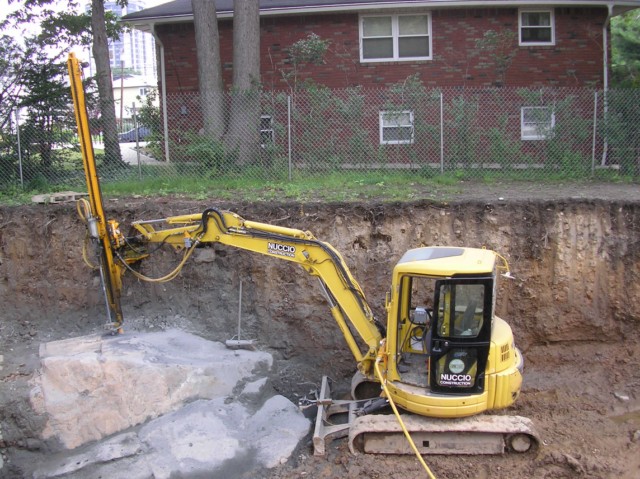

EEI CanAm Excavator Hydraulic Rock Drill at Work (275_G)
⊞ Lightbox

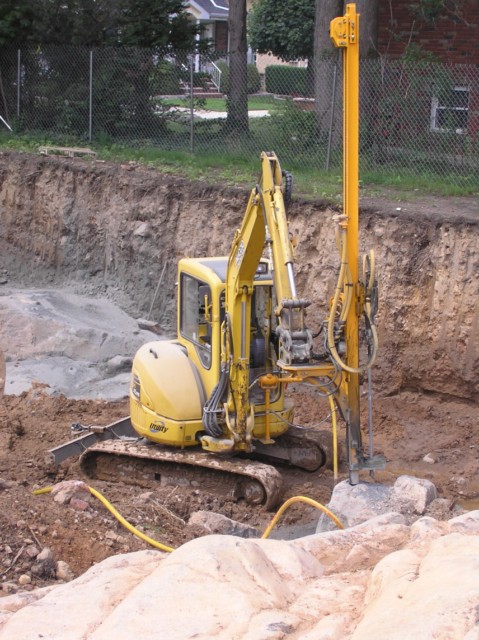

EEI CanAm Excavator Hydraulic Rock Drill at Work (347_G)
Restored Album 03: Gardner Denver 3500 Hydraulic Crawler Drill (5 Spec Sheets)
Restored from appiesnet/gallery/albums/album03
⊞ Lightbox
Gardner Denver 3500 Hydraulic Crawler Drill - Spec Sheet Page 1
⊞ Lightbox
Gardner Denver 3500 Hydraulic Crawler Drill - Spec Sheet Page 2
⊞ Lightbox
Gardner Denver 3500 Hydraulic Crawler Drill - Spec Sheet Page 3
⊞ Lightbox
Gardner Denver 3500 Hydraulic Crawler Drill - Spec Sheet Page 4
⊞ Lightbox
Gardner Denver 3500 Hydraulic Crawler Drill - Spec Sheet Page 5
