EEI-Socomec Hydraulic Breakers (Parma, Italy)
SOCOMEC S.P.A. (PARMA, ITALY · EST. 1972) · EXCLUSIVE NORTH AMERICAN IMPORTER
Italian Monoblock Silenced & Heavy Nitrogen-Assisted Hydraulic Breakers
Enterprising Europa Inc. (EEI) served as the official North American importer and general distributor for SOCOMEC S.p.A. of Italy, bringing over 30 years of engineering innovation in hydraulic demolition equipment. Socomec systems feature ISO 9002 and VISION 2000 certified quality management, presenting field-proven hydraulic breakers, pulverizers, screening buckets, and compaction systems designed for maximum efficiency, vibration mitigation, and low maintenance overhead.

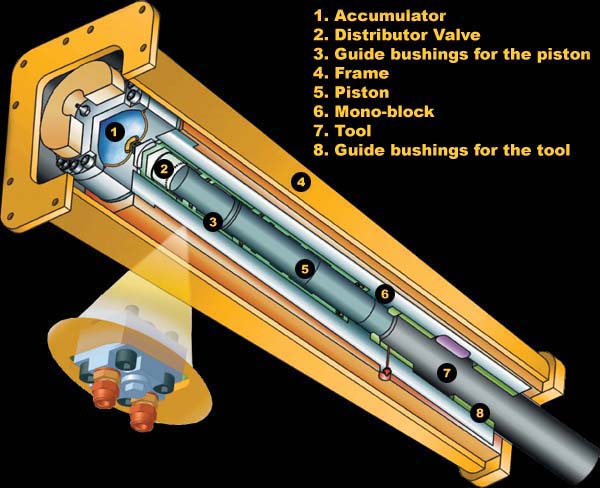

DMS Monoblock Cutaway

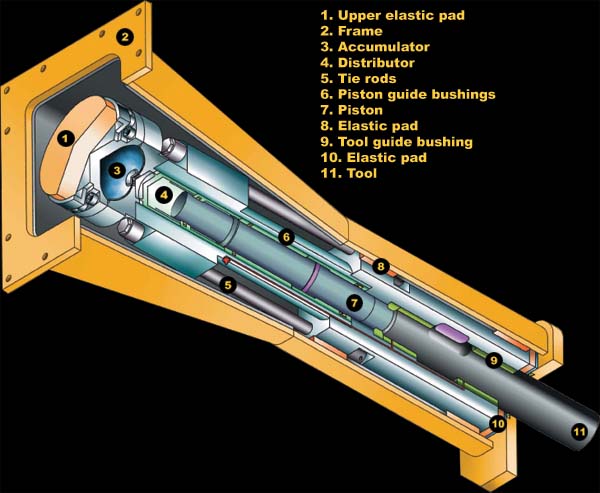

MDO Heavy Cutaway
Series 01 · 0.8 to 14 Ton Carriers
DMS Monoblock Silenced Hydraulic Breakers
| Model | Operating Weight | Excavator Carrier | Oil Flow (GPM / LPM) | Operating Pressure | Impact Rate (BPM) | Tool Diameter |
|---|---|---|---|---|---|---|
| DMS 50 | 132 lbs (60 kg) | 0.75 - 1.35 (1,500 - 2,650 lbs) Tons | 6.6 GPM (25.0 l/m) | 1750 PSI (120 bar) | 1200 BPM | 1.5 in (38 mm) |
| DMS 95 | 209 lbs (95 kg) | 1.35 - 2.0 (2,650 - 4,000 lbs) Tons | 9.3 GPM (35.2 l/m) | 1750 PSI (120 bar) | 1200 BPM | 1.8 in (45 mm) |
| DMS 150 / DMS 165 | 331 - 363 lbs (150 - 165 kg) | 2.0 - 3.3 (4,000 - 6,600 lbs) Tons | 12.0 GPM (45.4 l/m) | 1750 PSI (120 bar) | 1200 BPM | 2.2 in (55 mm) |
| DMS 210 | 463 lbs (210 kg) | 3.05 - 4.18 (6,100 - 8,350 lbs) Tons | 16.0 GPM (60.6 l/m) | 1750 PSI (120 bar) | 1100 BPM | 2.5 in (63.5 mm) |
| DMS 260 | 573 lbs (260 kg) | 4.18 - 6.05 (8,350 - 12,100 lbs) Tons | 21.2 GPM (80.3 l/m) | 1750 PSI (120 bar) | 1000 BPM | 2.7 in (68 mm) |
| DMS 310 | 683 lbs (310 kg) | 5.5 - 7.75 (11,000 - 15,500 lbs) Tons | 26.6 GPM (100.7 l/m) | 1750 PSI (120 bar) | 1000 BPM | 2.9 in (75 mm) |
| DMS 410 | 904 lbs (410 kg) | 7.18 - 10.45 (14,350 - 20,900 lbs) Tons | 29.2 GPM (110.5 l/m) | 1750 PSI (120 bar) | 900 BPM | 3.1 in (80 mm) |
| DMS 510 / DMS 530 | 1124 - 1166 lbs (510 - 530 kg) | 8.83 - 12.68 (17,650 - 25,350 lbs) Tons | 32.3 GPM (122.3 l/m) | 1750 PSI (120 bar) | 900 BPM | 3.3 in (85 mm) |
| DMS 740 / DMS 850 | 1631 - 1870 lbs (740 - 850 kg) | 10.45 - 14.88 (20,900 - 29,750 lbs) Tons | 34.6 GPM (131.0 l/m) | 1750 PSI (120 bar) | 900 BPM | 3.7 in (95 mm) |
Series 02 · 11 to 45 Ton Carriers
MDO Medium & Heavy Hydraulic Breakers
| Model | Operating Weight | Excavator Carrier | Oil Flow (GPM / LPM) | Operating Pressure | Impact Rate (BPM) | Tool Diameter |
|---|---|---|---|---|---|---|
| MDO 550 TS | 1853 lbs (840 kg) | 13.2 - 16.5 (26,450 - 33,000 lbs) Tons | 30.8 GPM (116.6 l/m) | 1850 PSI (128 bar) | 600 - 900 BPM | 3.7 in (95 mm) |
| MDO 750 TS | 2510 lbs (1138 kg) | 16.5 - 24.25 (33,000 - 48,500 lbs) Tons | 37.2 GPM (140.8 l/m) | 1850 PSI (128 bar) | 600 - 900 BPM | 4.5 in (115 mm) |
| MDO 1000 TS | 2200 lbs (998 kg) | 13.0 - 16.0 (26,000 - 32,000 lbs) Tons | 45.0 GPM (170.3 l/m) | 1900 PSI (131 bar) | 600 - 800 BPM | 4.4 in (112 mm) |
| MDO 1300 TS | 2860 lbs (1297 kg) | 15.0 - 22.0 (30,000 - 44,000 lbs) Tons | 38.0 GPM (143.8 l/m) | 1900 PSI (131 bar) | 500 - 680 BPM | 4.7 in (120 mm) |
| MDO 1450 TS | 3162 lbs (1434 kg) | 20.95 - 27.55 (41,900 - 55,100 lbs) Tons | 43.9 GPM (166.2 l/m) | 1850 PSI (128 bar) | 450 - 700 BPM | 5.0 in (127 mm) |
| MDO 1700 TS | 3740 lbs (1696 kg) | 19.0 - 27.0 (38,000 - 54,000 lbs) Tons | 50.0 GPM (189.3 l/m) | 2000 PSI (138 bar) | 480 - 650 BPM | 5.3 in (135 mm) |
| MDO 1950 TS | 4252 lbs (1929 kg) | 26.5 - 35.25 (53,000 - 70,500 lbs) Tons | 53.2 GPM (201.4 l/m) | 1850 PSI (128 bar) | 450 - 650 BPM | 5.5 in (140 mm) |
| MDO 2300 TS | 5000 lbs (2268 kg) | 25.0 - 33.0 (50,000 - 66,000 lbs) Tons | 59.0 GPM (223.3 l/m) | 2000 PSI (138 bar) | 460 - 630 BPM | 6.0 in (152 mm) |
| MDO 3000 TS | 6600 lbs (2994 kg) | 33.0 - 50.0 (66,000 - 100,000 lbs) Tons | 72.0 GPM (272.5 l/m) | 2150 PSI (148 bar) | 380 - 500 BPM | 6.5 in (165 mm) |
| MDO 3200 TS | 7056 lbs (3200 kg) | 38.5 - 55.0 (77,000 - 110,000 lbs) Tons | 72.0 GPM (272.5 l/m) | 2150 PSI (148 bar) | 450 - 600 BPM | 6.5 in (165 mm) |
| MDO 4000 TS | 9240 lbs (4191 kg) | 49.5 - 82.5 (99,000 - 165,000 lbs) Tons | 88.0 GPM (333.1 l/m) | 2300 PSI (159 bar) | 360 - 480 BPM | 7.1 in (180 mm) |
