Gallmac 360° Hydrostatic 4WD/4WS Multi-Task Tool Carriers
Restored from accessories-info.html & accessories-info-s.html
18 Quick-Coupled Gallmac Multi-Task Attachments
DMS Medium-Light Duty Hammers (DMS 50 to DMS 740)
US Spec: Impact freq: 900-1200 b/min; Oil flow: 6.6-34.6 gal/min; Working pressure: 1750 psi; Hammer weight: 132-1631 lbs; Tool diam: 1.5-3.7 in.; Tool height w/o plate: 29.5-72.5 in.; Excavator carrier weight: 1,500 to 29,750 lbs
Metric: Impact freq: 900-1200 b/min; Oil flow: 25-131 L/min; Working pressure: 120.7 bar; Hammer weight: 59.9-739.8 kg; Tool diam: 38.1-94 mm; Tool height w/o plate: 749.3-1841.5 mm; Excavator carrier weight: 700 to 13,500 kg
MDO Medium-Heavy Duty Hammers (MDO 550 TS to MDO 3200 TS)
US Spec: Impact freq: 450-900 b/min; Oil flow: 30.8-72 gal/min; Working pressure: 1850-2150 psi; Hammer weight: 1853-7056 lbs; Tool diam: 3.7-6.5 in.; Tool height w/o plate: 78.7-118.9 in.; Carrier weight: 26,450 to 110,000 lbs
Metric: Impact freq: 450-900 b/min; Oil flow: 116.9-272.5 L/min; Working pressure: 127.6-148.2 bar; Hammer weight: 840.5-3200.5 kg; Tool diam: 94-165.1 mm; Tool height w/o plate: 1999-3020.1 mm; Carrier weight: 12,000 to 49,900 kg
PDO Series Demolition Crusher (PDO 200, PDO 300, PDO 650)
US Spec: Weight: 440/660/1430 lbs; Jaw openings A: 14/14/20 in.; B: 14/14/16 in.; C: 3 1/4 / 3 1/4 / 6 1/4 in.; D: 45/49/60 in.; E: 1 / 1 1/4 / 1 1/2 in.; Cylinder force: 20/30/50 t; Cutter force: 40/70/100 t; Pressure: 2900/3600/4000 psi; 360 deg hydraulic rotation; Carrier: 1.7-13 t
Metric: Weight: 200/300/650 kg; Jaw openings A: 300/360/500 mm; B: 300/355/410 mm; C: 80/80/160 mm; D: 1130/1240/1515 mm; E: 25/30/35 mm; Cylinder force: 20/30/50 t; Cutter force: 40/70/100 t; Pressure: 200/250/280 bar; 360 deg hydraulic rotation; Carrier: 1.7-13 t
Reverse Bucket with Teeth
US Spec: Widths: 15, 22, 28, 35, 43 in.; Range w/o tooth: 40 in.; Capacity SAE full: 180, 251, 326, 423, 527; Teeth: 3 to 6
Metric: Widths: 380, 550, 700, 900, 1,100 mm; Range w/o tooth: 1,025 mm; Capacity SAE full: 180, 251, 326, 423, 527 L; Teeth: 3 to 6
Reverse Bucket with Esco Teeth
US Spec: Widths: 15, 22, 28, 35, 43 in.; Range w/o tooth: 40 in.; Capacity SAE full: 180, 251, 326, 423, 527; Esco teeth: 3 to 6
Metric: Widths: 380, 550, 700, 900, 1,100 mm; Range w/o tooth: 1,025 mm; Capacity SAE full: 180, 251, 326, 423, 527 L; Esco teeth: 3 to 6
Reverse Bucket Big Radius with Teeth
US Spec: Width: 15/10 in.; Range of tooth: 51 in.; A: 10 in.; B: 15 in.; Capacity SAE: 160; Teeth: 2 (Esco optional)
Metric: Width: 380/240 mm; Range of tooth: 1,300 mm; A: 240 mm; B: 380 mm; Capacity SAE: 160 L; Teeth: 2 (Esco optional)
Standard Front Bucket with Teeth
US Spec: Width: 93 in.; Range w/o tooth: 36 in.; Capacity SAE empty/full: 657 / 805; Teeth: 6
Metric: Width: 2,350 mm; Range w/o tooth: 925 mm; Capacity SAE empty/full: 657 / 805 L; Teeth: 6
4-in-1 Bucket with Teeth
US Spec: Width: 93 in.; Range w/o tooth: 36 in.; Capacity SAE empty/full: 470 / 580; Teeth: 6
Metric: Width: 2,350 mm; Range w/o tooth: 925 mm; Capacity SAE empty/full: 470 / 580 L; Teeth: 6
Fixed Ditch Digging Bucket without Teeth
US Spec: Width: 79 in.; Capacity SAE: 380; Teeth: None
Metric: Width: 2,000 mm; Capacity SAE: 380 L; Teeth: None
Swiveling Ditch Cleaning Bucket without Teeth
US Spec: Width: 79 in.; Capacity SAE: 380; Hydraulic swivel angling; Teeth: None
Metric: Width: 2,000 mm; Capacity SAE: 380 L; Hydraulic swivel angling; Teeth: None
Ripper Tooth
US Spec: Length: 37 in.
Metric: Length: 950 mm
Pallet Forks
US Spec: Width: 59 in.; Length: 47 in.; Rated weight: 8,819 lbs
Metric: Width: 1,500 mm; Length: 1,200 mm; Rated weight: 4,000 kg
Lifting Hook on Boom
US Spec: Boom lengths: 59 in., 98 in., 138 in.
Metric: Boom lengths: 1,500 mm, 2,500 mm, 3,500 mm
Maintenance Basket
US Spec: CE certified; Max payload: 441 lbs; Working height: 354 in. (29.5 ft)
Metric: CE certified; Max payload: 200 kg; Working height: 9,000 mm

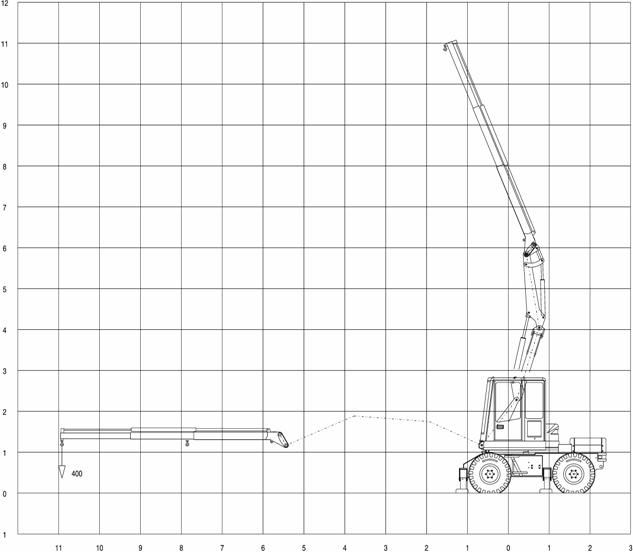

Telescopic Arm
US Spec: WMW 60: Min length 307 in. (2,205 lbs), Max length 429 in. (882 lbs), Max height 433 in.; WMW 100: Min length 350 in. (2,205 lbs), Max length 472 in. (882 lbs), Max height 476 in.
Metric: WMW 60: Min length 7,800 mm (1,000 kg), Max length 10,900 mm (400 kg), Max height 11,000 mm; WMW 100: Min length 8,900 mm (1,000 kg), Max length 12,000 mm (400 kg), Max height 12,100 mm
Augers and Helicoidal Drills
US Spec: Max pressure 4,640 psi (320 bar), max volume 29 gpm (110 L/min), cardanic saddle arm mount; Diameters: 4 to 40 in. in lengths 43 in. and 63 in.; Widia rock points up to 40 in. diam
Metric: Max pressure 320 bar, volume max 110 L/min, cardanic saddle arm mount; Diameters: 100 to 1,100 mm in lengths 1,100 mm and 1,600 mm; Widia points for rocky soil up to 1,000 mm diam
Snow Plow 10 ft for WMW-115 / RMW-115
US Spec: Width: 10 ft snow plow blade
Metric: Width: 3,048 mm (10 ft) angled snow plow blade
Trenching Attachment for WMW-115 / RMW-115
US Spec: Specialized railway trenching tool attachment
Metric: Specialized railway trenching tool attachment
