Gallmac 360° Hydrostatic 4WD/4WS Multi-Task Tool Carriers
Multi-Purpose Road-Rail Railway Excavator
Gallmac RMW-115 Road-Rail Hi-Rail
The Gallmac RMW-115 is a versatile multi-task railway machine designed for road and rail operation. Featuring an independent closed loop hydrostatic transmission, forged steel modular rail wheels, dual wide/narrow rail running gauge configuration, and comprehensive safety controls.
Gallmac RMW-115 Road-Rail Hi-Rail Engineering Specification Table
| Subsystem | Engineering Parameter | US Standard (Imperial) | Metric (SI Units) |
|---|---|---|---|
| Engine & Railway Gear | Hydrostatic Transmission | 6,091 psi (420 bar) closed loop independent hydrostatic transmission on front axle | 420 bar closed loop independent hydrostatic transmission on front axle |
| Engine & Railway Gear | Maximum Travel Speed (Road/Max) | Up to 16 mph | Up to 26 km/h |
| Engine & Railway Gear | Maximum Speed on Rails | 12.5 mph (up to 15.5 mph on demand) | 20 km/h (up to 25 km/h on demand) |
| Engine & Railway Gear | Theoretical Gross Tractive Effort | 9,040 lbs | 4,100 kg |
| Engine & Railway Gear | Maximum Traveling Slope on Rails | 34.5% | 34.5% |
| Engine & Railway Gear | Rail Axles | Front rigid linked vertically adjustable; rear swinging +/- 3/4 in. stroke per side | Front rigid linked vertically adjustable; rear swinging +/- 20 mm stroke per side |
| Engine & Railway Gear | Rail Wheels Diameter | 20 in. forged steel modular wheels | 500 mm forged steel modular wheels |
| Engine & Railway Gear | Rail Elevation Stroke (Lift Above Rail Flat) | 9 in. above rail flat | 230 mm above rail flat |
| Engine & Railway Gear | Rail Lowering Stroke (Lower Down) | 7 3/4 in. from rail flat | 200 mm from rail flat |
| Engine & Railway Gear | Undercarriage Ground Clearance to Rail Flat | 5 in. (gap range 5 1/2 - 9 in.) | 130 mm (gap range 140 - 230 mm) |
| Dimensions & Turret | Tires | Michelin 12.00 R20 X MINE D2 | Michelin 12.00 R20 X MINE D2 |
| Dimensions & Turret | Tire Width - Narrow Gauge (Inner / Outer) | 56 in. / 82 in. | 1,414 mm / 2,074 mm |
| Dimensions & Turret | Tire Width - Wide Gauge (Inner / Outer) | 70 in. / 96 in. | 1,790 mm / 2,450 mm |
| Dimensions & Turret | Maximum Boom Height (Driving on Rails) | 125 3/4 in. | 3,195 mm |
| Dimensions & Turret | Turnable Turret Maximum Radius | 57 in. | 1,450 mm |
| Dimensions & Turret | Mechanical End-Turning Limit | 62 in. max side overall dimension | 1,575 mm max side overall dimension |
| Safety & Auxiliary Systems | Trolley Brake Connectors | 2x 435 psi (30 bar) hydraulic quick connectors | 2x 30 bar hydraulic quick connectors |
| Safety & Auxiliary Systems | Trolley Electrical Connectors | 2x 12 V quick connectors | 2x 12 V quick connectors |
| Safety & Auxiliary Systems | Emergency Operation | Manual emergency pump folds booms/turret within 15 min | Manual emergency pump folds booms/turret within 15 min |
Restored Gallmac RMW-115 Road-Rail Hi-Rail @ Work Field Photo Gallery (24 Photos)
Open All 123 Gallmac Jobsite Photos in MOD-LIGHTBOX ->
⊞ Lightbox
Gallmac RMW-115 @ WORK - PC100013
⊞ Lightbox
Gallmac RMW-115 @ WORK - PC100014
⊞ Lightbox
Gallmac RMW-115 @ WORK - PC100015
⊞ Lightbox
Gallmac RMW-115 @ WORK - P3030001
⊞ Lightbox
Gallmac RMW-115 @ WORK - P3030002
⊞ Lightbox
Gallmac RMW-115 @ WORK - P3030003
⊞ Lightbox
Gallmac RMW-115 @ WORK - dscf1002
⊞ Lightbox
Gallmac RMW-115 @ WORK - f104
⊞ Lightbox
Gallmac RMW-115 @ WORK - dscf1004
⊞ Lightbox
Gallmac RMW-115 @ WORK - dscf1005
⊞ Lightbox
Gallmac RMW-115 @ WORK - dscf1006
⊞ Lightbox
Gallmac RMW-115 @ WORK - dscf1007
⊞ Lightbox
Gallmac RMW-115 @ WORK - dscf1003
⊞ Lightbox
Gallmac RMW-115 @ WORK - dscf1008
⊞ Lightbox
Gallmac RMW-115 @ WORK - dscf1009
⊞ Lightbox
Gallmac RMW-115 @ WORK - dscf1010
⊞ Lightbox
Gallmac RMW-115 @ WORK - IMG_0834
⊞ Lightbox
Gallmac RMW-115 @ WORK - IMG_0838
⊞ Lightbox
Gallmac RMW-115 @ WORK - IMG_0845
⊞ Lightbox
Gallmac RMW-115 @ WORK - IMG_0837
⊞ Lightbox
Gallmac RMW-115 @ WORK - IMG_0840
⊞ Lightbox
Gallmac RMW-115 @ WORK - IMG_0841
⊞ Lightbox
Gallmac RMW-115 @ WORK - bruno-1
⊞ Lightbox
Gallmac RMW-115 @ WORK - bruno-2
RMW-115 Railway Maintenance Configurations (Pages PG24 - PG41)
Restored from the 18 original RMW-115 railway engineering sheets: rail grinding, tie tamping, ballast profiling, overhead catenary basket, and snow clearing. Click any sheet to inspect in MOD-LIGHTBOX.

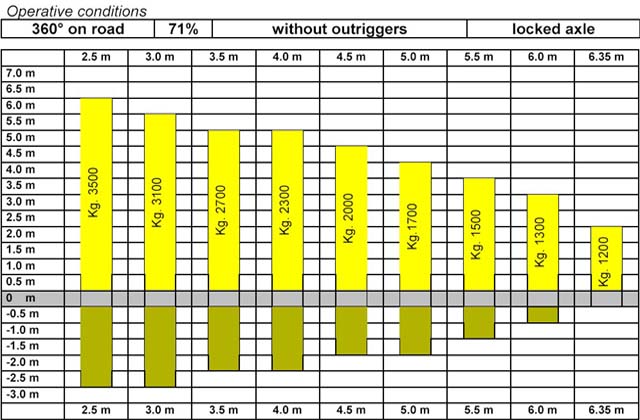

Config PG-24 Diagram

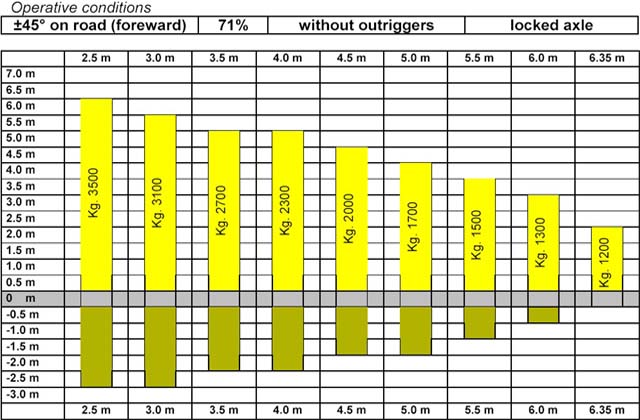

Config PG-25 Diagram

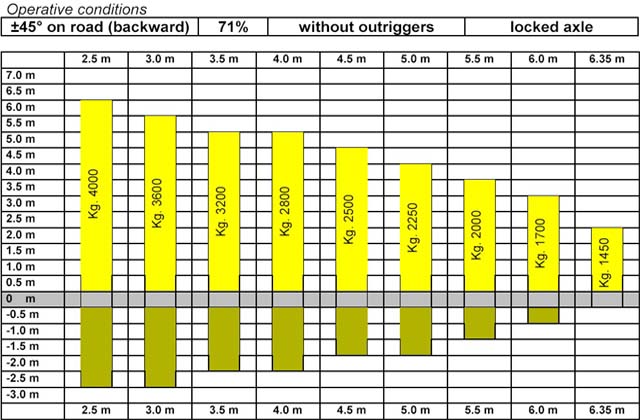

Config PG-26 Diagram

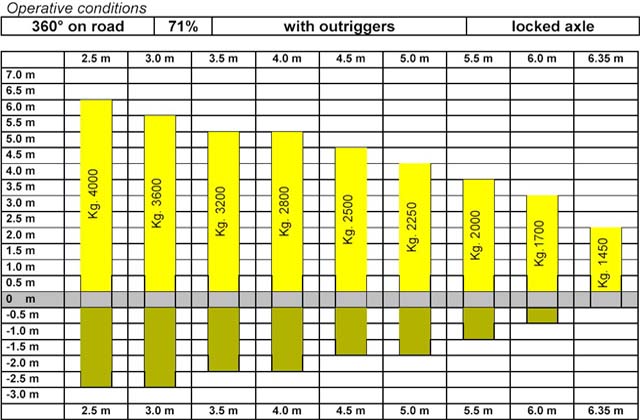

Config PG-27 Diagram

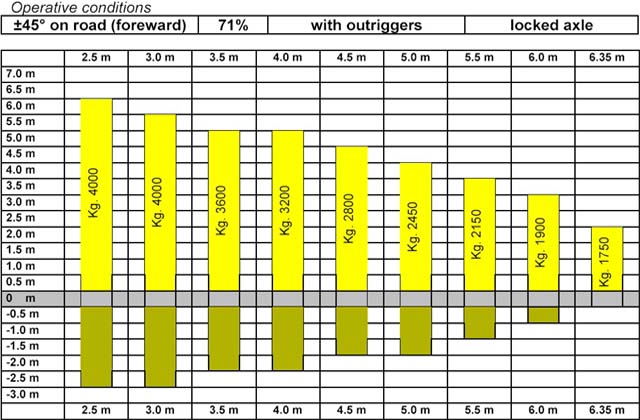

Config PG-28 Diagram

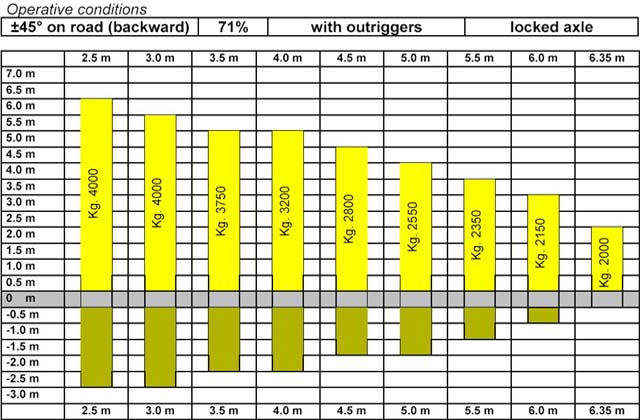

Config PG-29 Diagram

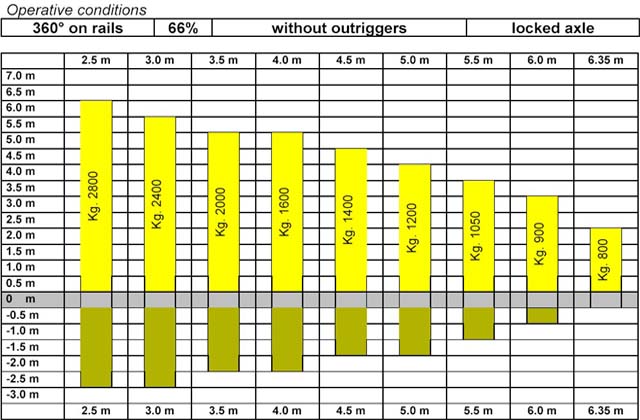

Config PG-30 Diagram

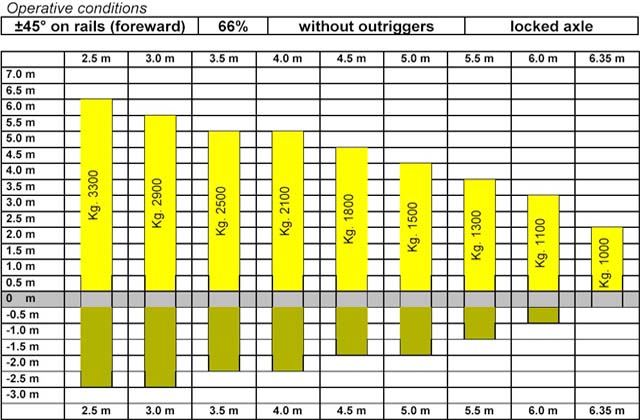

Config PG-31 Diagram
Config PG-32 Diagram

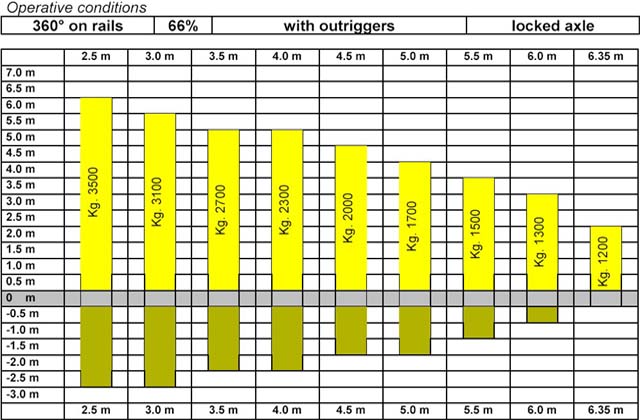

Config PG-33 Diagram

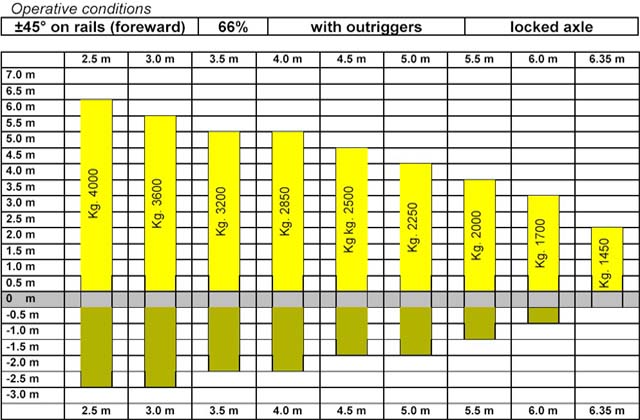

Config PG-34 Diagram

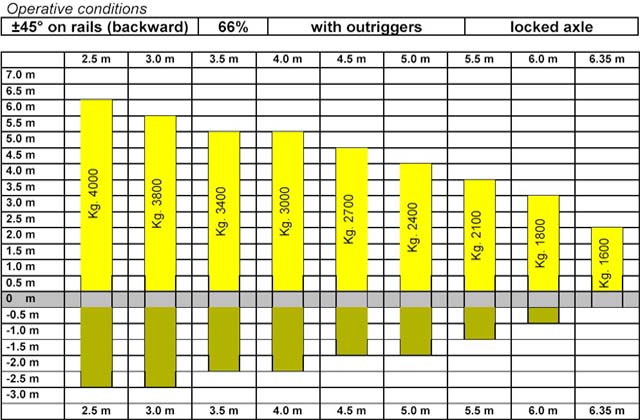

Config PG-35 Diagram

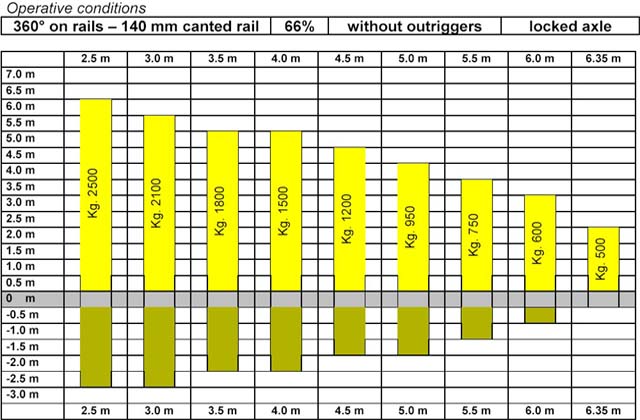

Config PG-36 Diagram

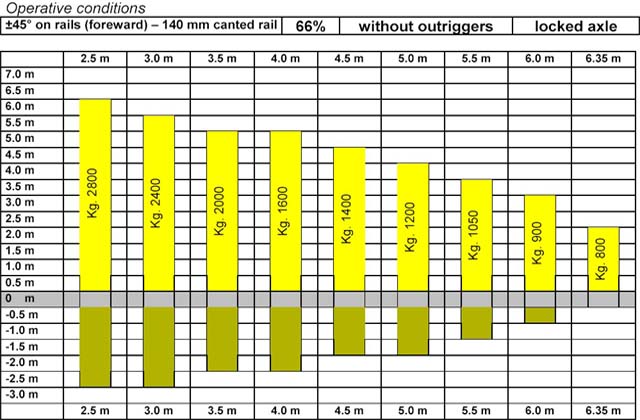

Config PG-37 Diagram

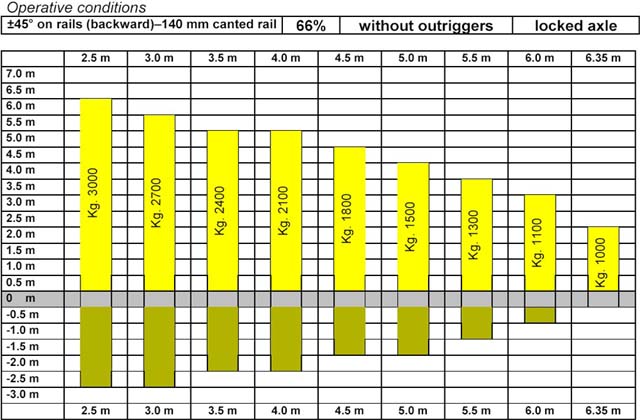

Config PG-38 Diagram

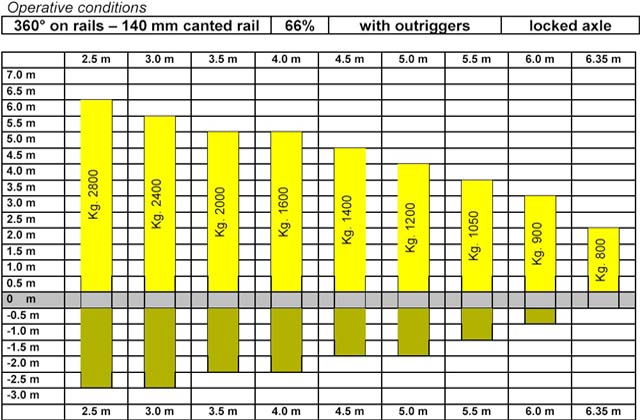

Config PG-39 Diagram

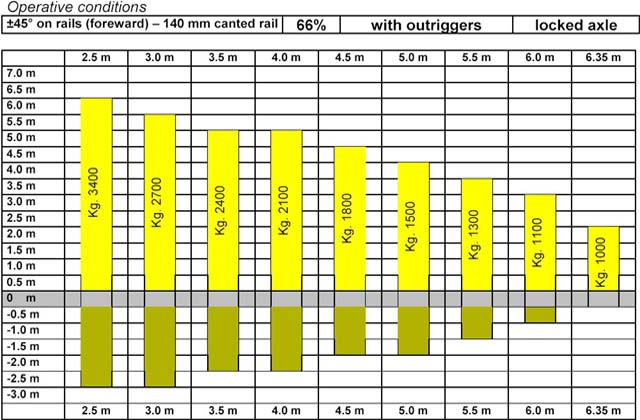

Config PG-40 Diagram

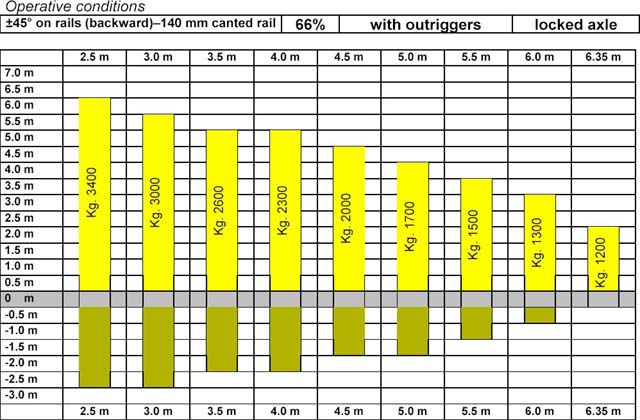

Config PG-41 Diagram
